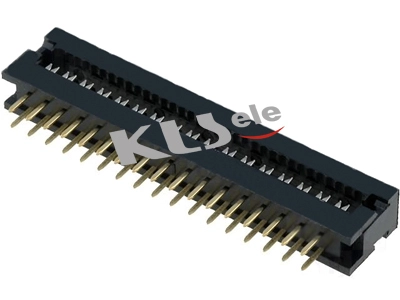

KLS1-205B Pitch 2.0mm Dip Plug IDC Socket Connector
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000
Model:
KLS1-205B
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
2.0mm Pitch Dip Plug IDC Connector
Order Information:
KLS1-205B-XX-B
XX-No.of 06~60pin
B-Black
Material:
Housing: 30% Glass filled PBT UL94V~0
Contacts: Phosphor Bronze
Cable: 1.00mm (0.039") pitch flat cable 测试
Electrical Characteristics:
Current Rating: 1 AMP
Insulator Resistance: 5000M Ohm min. at DC 500V
Contact Resistance: 20m Ohm max. at DC 100mA
Operating Temperature: -45ºC~+105ºC
