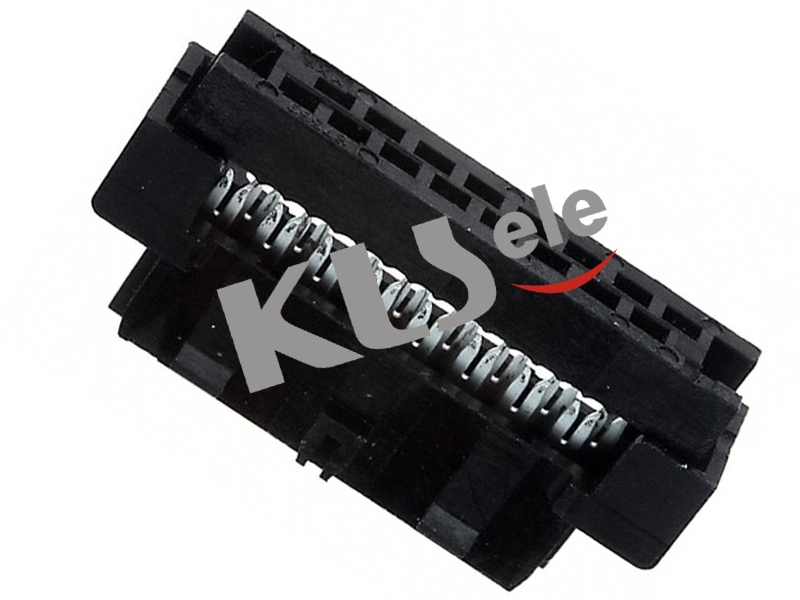

Pitch 2.0mm IDC Socket Connector,With ear
Order Information:
KLS1-204BE-XX-B
XX-No.of 10~50pin
B-Black G-Gray L-Blue
Electrical Characteristics:
Current Rating: 1 AMP
Withstanding Voltage:AC 500V for 1 Minute
Insulator Resistance: 1000M Min. at DC 500V
Contact Resistance: 15m Max.
Operating Temperature: -40ºC~+105ºC
Material:
Insulator:PBT+30% Glass Fiber (UL94V-0)
Contacts:Copper Alloy with Gold or Tin over Nickel Plated.
Cable: 1.00mm pitch fiat cable
