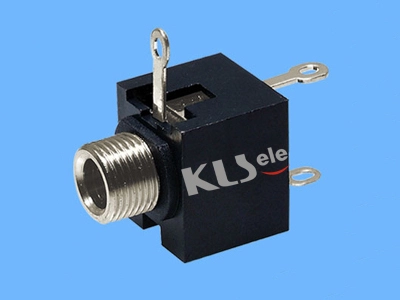

KLS1-TG3.5-001A 3.5mm Mono Phone Audio Jack
Technical parameters:
Rated voltage: DC 30
V
Rated current: 0.5 A
Contact
resistance: 0.03Ω, max
Insulation resistance: 100MΩ,
min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life: 50000
times
Operating Temperature:-30ºC~+70ºC
Material:
Housing Material:PBT
Center Pin Material:
Terminal 1
:Brass
Terminal 2 :Copper Alloy
Terminal 3 :Brass
Bushing :Brass
