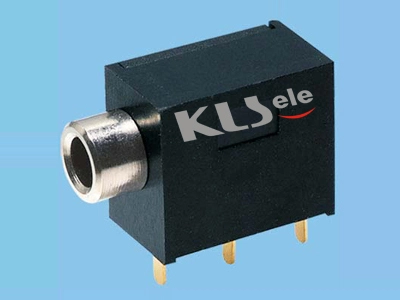

KLS1-TSJ3.5-008EB 3.5mm Mono Phone Audio Jack
Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5
A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ,
min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life:
50000 times
Operating Temperature:-30ºC~+70ºC
Material:
Housing Cover :
PBT
Center Pin Material:
Spring : Stainless Steel
Terminal 1 2 3 10 11
: Brass
Bushing : Brass
