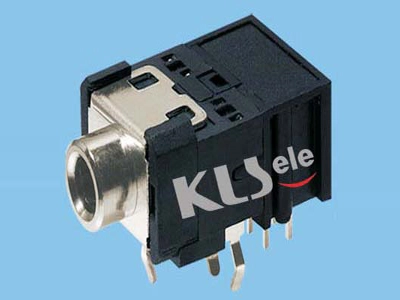

KLS1-TSJ3.5-010B 3.5mm Mono Phone Audio Jack
Technical parameters:
Rated voltage: DC 30 V
Rated current: 0.5
A
Contact resistance: 0.03Ω, max
Insulation resistance: 100MΩ,
min
Pressure: AC500V (50Hz) / 1minute
Insertion Force :2-20 N
Life:
50000 times
Operating
Temperature:-30ºC~+70ºC
Material:
Housing-A/B,Cover : PBT
Terminal
1 : Cold Rolled Steel
Terminal 2,3 : Copper Alloy
Spring 1 : Stainless
Steel
Spring 2 : Copper Alloy
Bushing : Brass
Insulator :
Pa66
Contact Clip : C521OR-EH AG CLAD
Terminal 4,5,6,7,8,9,10,11 : Brass
