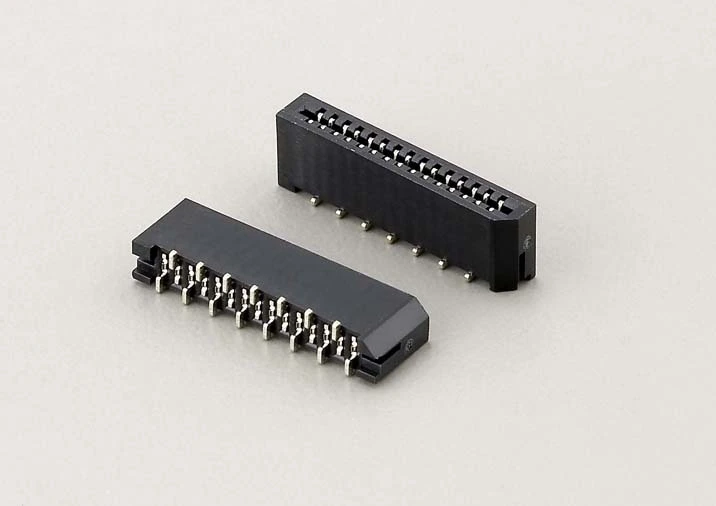

    KLS1-1240B 1.0mm Dual Contact NO-ZIF Type H=5.5mm FFC FPC Connectors

    KLS1-1240B-XX-S-B-PT
    XX-No.of  04 ~ 32pin
    S-Straight Pin  R-Right Angle Pin    T-SMT Pin
    B-Black
    P-Positive needle   A-Anti-needle
    T-Tubes

    Material
    Housing:PA9T, UL94V-0
    Terminal:Phosphor Bronze
    Electrical
    Voltage rating: 50 V
    Current Rating: 0.4 A
    Withstanding Voltage: 200 V
    Insulation resistance: 500MΩ.Min.
    Contact resistance: 20 mΩ.Max.
    Mechanical
    Temp. Range:   -25 ° C ~ + 85 ° C
