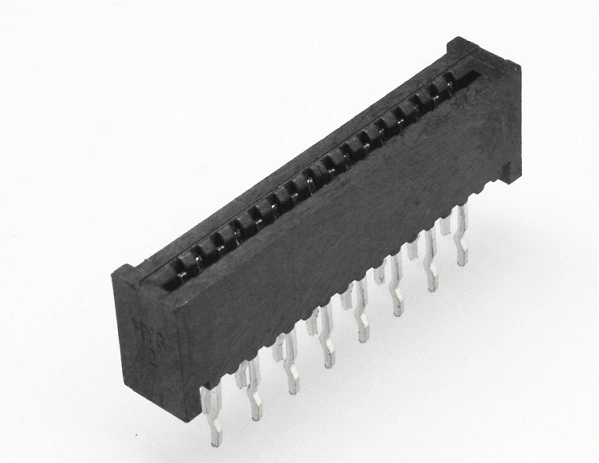

KLS1-220G 1.25mm Dual Contact NO-ZIF Type H=5.5mm FFC FPC Connectors
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-220G
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1.25mm Dual Contact NO-ZIF Type H=5.5mm FFC FPC Connectors
Order Information
KLS1-220G-XX-S-P
XX-No.of 04 ~ 33pin
S-Straight Pin
P-Positive needle A-Anti needle
Specifications:
Material
Housing: LCP, UL94V-0
Contact: Phosphor Bronze,Tin plated
Electrical
Voltage rating: 50 V
Current rating: 0.5 A
Withstanding Voltage: 500 V
Insulation resistance: 800MΩ.Min.
Contact resistance: 40 mΩ.max.
Mechanical
Temp. Range: -25 ° C ~ + 85 ° C
