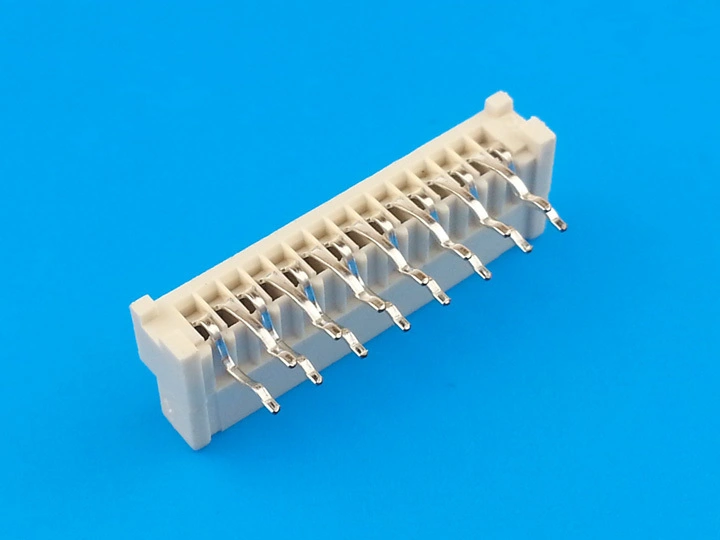

1.25mm Single Contact NO-ZIF Type H=7.5mm FFC FPC Connectors
Order Information
KLS1-220-XX-S-P
XX-No.of 04 ~ 40pin
S-Straight Pin R-Right Angle Pin
P-Positive needle A-Anti needle
Material:
Housing: PBT UL94V-0
Contact: Phosphor Bronze
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 200VAC RMS
Current rating: 1 AMP
Dielectric Withstandingf Voltage: 1000 VAC R.M.S.60Hz for 1 Minute
Insulation resistance: 5000 Megohms Min at 500 VDC
Contact resistance: 25m ohm. max.
Temperature range: -40℃ To +105℃
