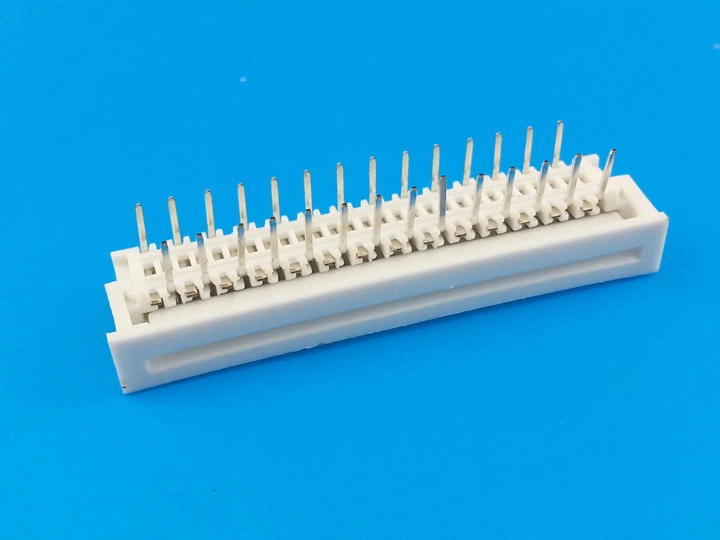

KLS1-220C 1.25mm Single Contact ZIF-lock Type H=10mm FFC FPC Connectors
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-220C
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-220C 1.25mm Single Contact ZIF-lock Type H=10mm FFC FPC Connectors
Order Information
KLS1-220C-XX-S-P
XX-No.of 03 ~ 32pin
S-Straight Pin R-Right Angle Pin
P-Positive needle A-Anti needle
Material
Housing: PBT,UL94V-0
Terminal:Copper Alloy
Electrical
Voltage rating: 200 V
Current Rating: 1 A
Withstanding Voltage: 500 V
Insulation resistance: 500MΩ.Min.
Contact resistance: 20 mΩ.Max.
Mechanical
Temp. Range: -20 ° C ~ + 85 ° C
