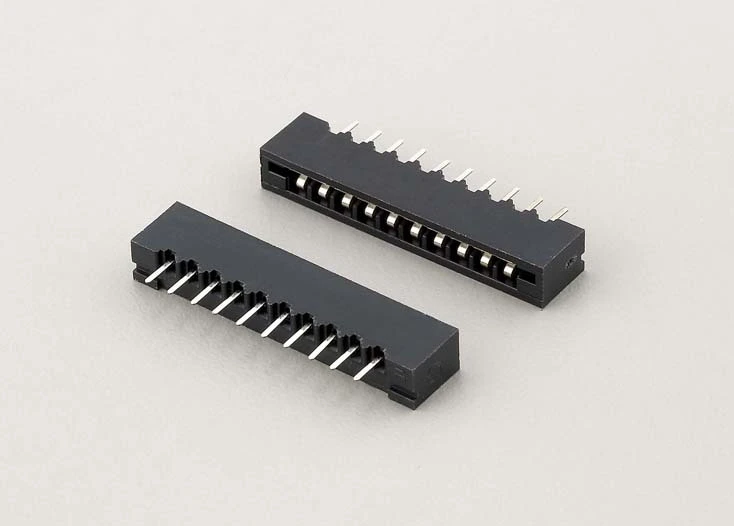

KLS1-219 2.54mm Film Dual Contact Single Entry NO-ZIF DIP Type FFC/FPC Connectors
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-219
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
2.54mm Film Dual Contact Single Entry NO-ZIF DIP Type FFC/FPC Connectors
Order Information
L-KLS1-219-XX-S
L: RoHS
219: Series No.
XX: Number of pins 3~21P
S: Straight Pin R: Right angle Pin
Material
Insulator:Glass-Reinforced Thermoplastic
Contact:Copper Alloy, Tin/Lead Plated Over Nickel
Electrical
Voltage rating: 250 V
Current rating: 1 A
Withstanding Voltage: 1000 V
Insulation resistance: 5000MΩ.Min.
Contact resistance: 25 mΩ.max.
Mechanical
Temp. Range: -40 ° C ~ + 105 ° C
