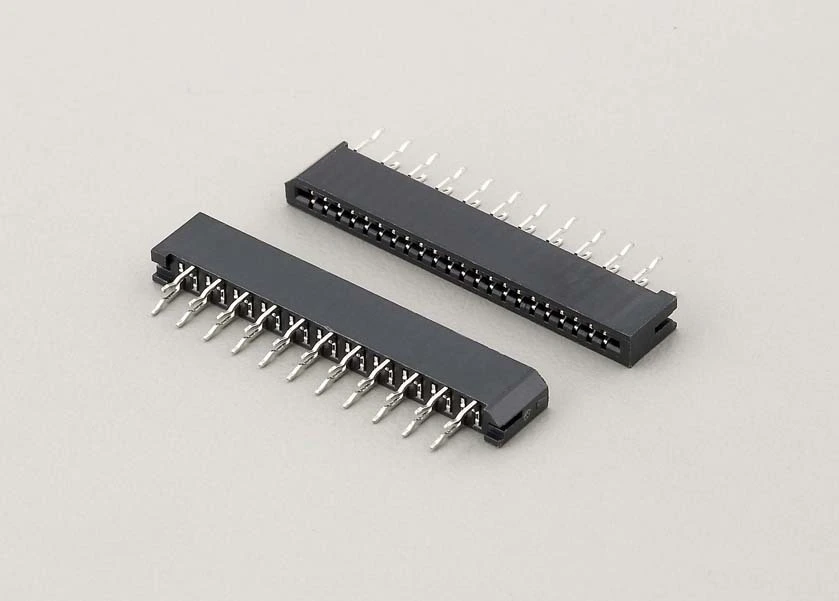

KLS1-220B 1.25mm Dual Contact NO-ZIF Type H=5.5mm FFC FPC Connectors
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-220B
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1.25mm Dual Contact NO-ZIF Type H=5.5mm FFC FPC Connectors
Order Information
KLS1-220B-XX-R-B-P-T
XX-No.of 04 ~ 36pin
R-Right angle Pin S-Straight Pin T-SMD Pin
B-Black
P-Positive needle A-Anti-needle
T-Tubes
Material:
Insulator: Glass-Reinforced Thermoplastic.
Contact: Copper Alloy.
Plating: All Tin, Lead Free.
Current Rating: 0.5 AMP.
Dielectric Withstanding Voltage: 500 VAC Min.
Insulation Resistance: 1000 MΩ Min.
Contact Resistance: 30 mΩ Max.
Temperature Range: -55゜C To +85゜C
Insulator: Glass-Reinforced Thermoplastic.
Contact: Copper Alloy.
Plating: All Tin, Lead Free.
Current Rating: 0.5 AMP.
Dielectric Withstanding Voltage: 500 VAC Min.
Insulation Resistance: 1000 MΩ Min.
Contact Resistance: 30 mΩ Max.
Temperature Range: -55゜C To +85゜C
