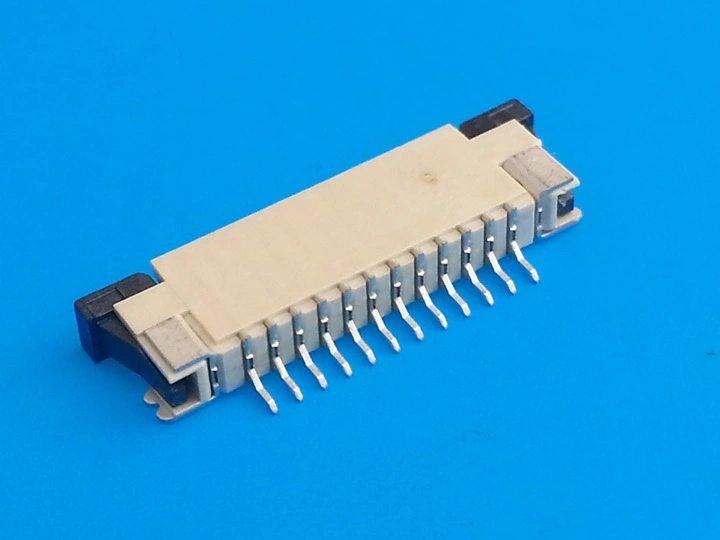

KLS1-1240D-2.5 1.0mm ZIF SMT H2.5mm bottom & lower contacts FPC/FFC connector
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-1240D-2.5
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-1240D-2.5 1.0mm ZIF SMT H2.5mm bottom lower contacts FPC FFC connector
Order Information
KLS1-1240D-2.5-XX-T-U-R
XX-No.of 04 ~ 35pin
T-Horizontal SMT
U-Upper Contact L-Lower Contact
R-Reel T-Tubes
Material:
Housing: LCP UL94V-0
Lock: PA46, UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Soldering lug: phosphor bronze, Tin Plated / Gold Plated
Electrical Characteristics:
Rated current:0.5A
Rated voltage:50V
Withstand voltage:500V
Contact resistance:≤20mΩ
Insulation resistance:800MΩ
Operating Temperature: -20℃ To +85℃
