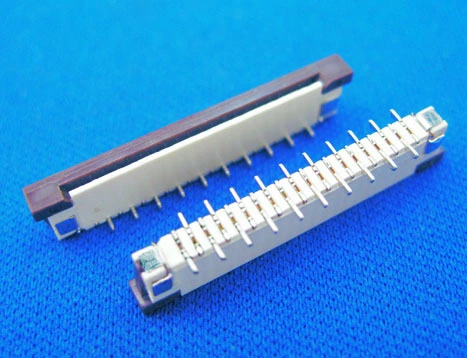

KLS1-1240D-5.5 1.0mm fpc socket pcb smt 180 zif-lock H5.5mm FPC FFC connectors
Order Information
KLS1-1240D-5.5-XX-T-P-R
XX-No.of 06 ~ 30pin
T-Vertical SMT
P-Positive needle A-Anti-needle
R-Reel T-Tubes
Material:
Housing: LCP UL94V-0
Contact: Phosphor Bronze
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.5 AMP
Dielectric Withstandingf Voltage: 500 VAC R.M.S.
Insulation resistance: 500m ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +105℃
