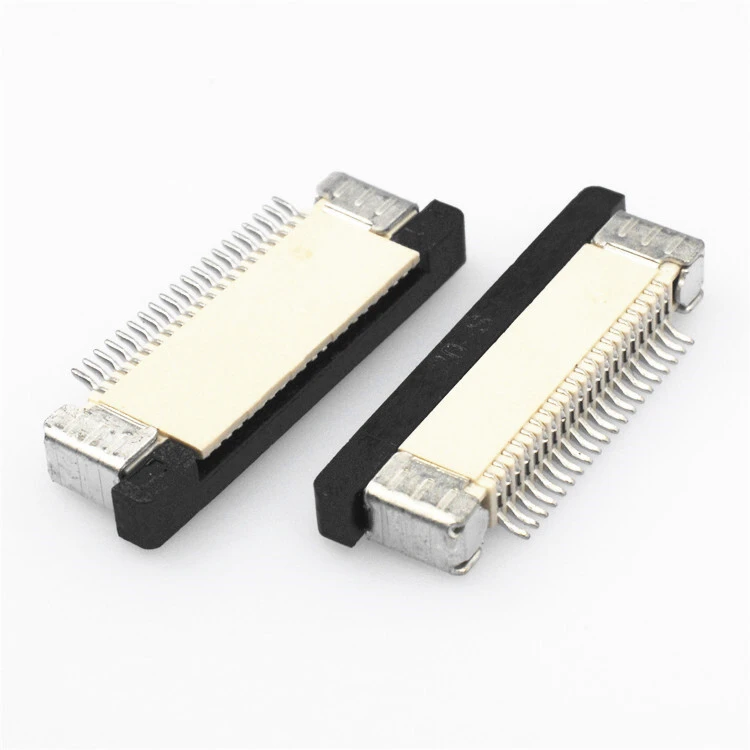

    KLS1-1242E-2.0 0.5mm ZIF SMT H2.0mm bottom lower contacts FPC FFC connector

    Order Information
    KLS1-1242E-2.0-XX-T-U-R
    XX-No.of 06 ~ 60pin
    T-SMT Pin
    U-Upper Contact  L-Lower Contact
    R-Reel   T-Tubes

    Material:
    Housing: LCP UL94V-0
    Plug spring: phosphor bronze, Tin Plated / Gold Plated
    Soldering lug
    Electrical Characteristics:
    Rated current:0.4A
    Rated voltage:50V
    Withstand voltage:200V
    Contact resistance:≤20mΩ
    Insulation resistance:500MΩ
    Operating Temperature: -20℃ To +85℃
    Note:
    When the PIN number is 30PIN or less, the lock is made of PA46.
    When the PIN number is above 30PIN, the lock is made of LCP
