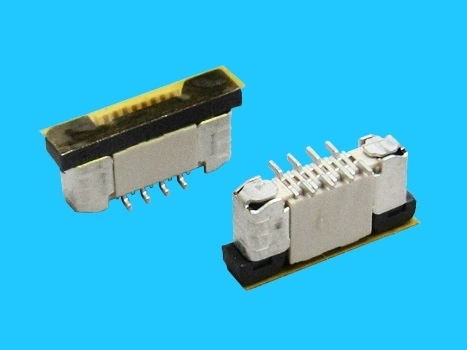

KLS1-1242E-4.8 0.50mm fpc socket pcb smt 180 zif-lock H4.8mm FPC/FFC connectors
Order Information
KLS1-1242E-4.8-XX-LT-P-R
XX-No.of 06 ~ 60pin
LT-Vertica
P-Positive needle A-Anti-needle
R-Reel T-Tubes
Material:
Housing: LCP UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Soldering lug
Electrical Characteristics:
Rated current:0.4A
Rated voltage:50V
Withstand voltage:200V
Contact resistance:≤20mΩ
Insulation resistance:500MΩ
Operating Temperature: -20℃ To +85℃
Note:
When the PIN number is 30PIN or less, the lock is made of PA46.
When the PIN number is above 30PIN, the lock is made of LCP
