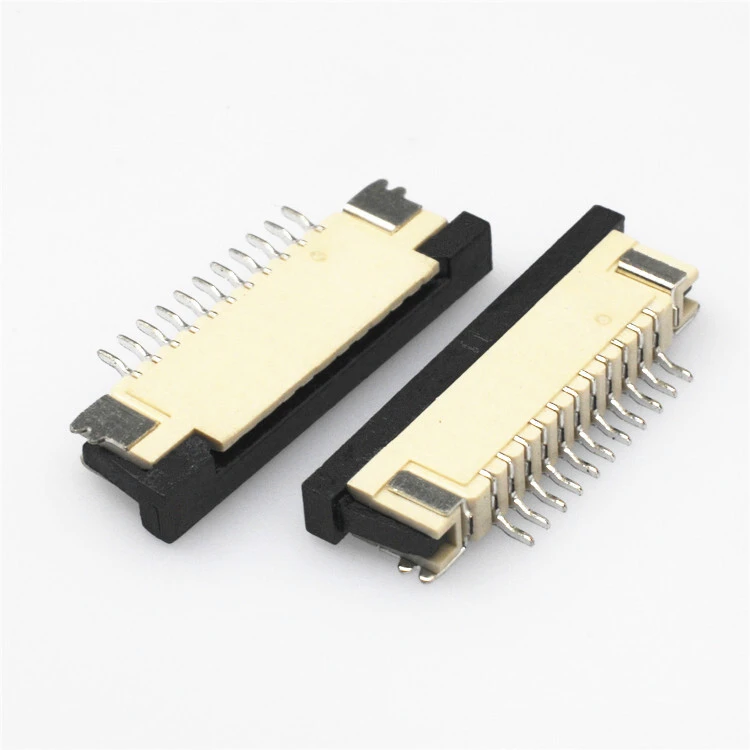

KLS1-220D 1.25mm SMD Upper Contact with ZIF H2.5mm FFC FPC Connector
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-220D
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-220D 1.25mm SMD Upper Contact with ZIF H2.5mm FFC FPC Connector
Order Information
KLS1-220D-2.5-XX-T-U-R
XX-No.of 04 ~ 35pin
T-SMT Pin
U-Upper Contact L-Lower Contact
R- Reel Packing T-Tube Packing
Material
Housing: LCP UL94V-0
Lock:LCP UL94V-0
Plug spring:Phosphor Bronze,Gold/Tin
Soldering:Phosphor Bronze,Gold/Tin
Electrical
Voltage rating: 50 V
Current rating: 0.5 A
Withstanding Voltage: 500 V
Insulation resistance: 800MΩ.Min.
Contact resistance: 20 mΩ.max.
Mechanical
Temp. Range: -20 ° C~+85° C
