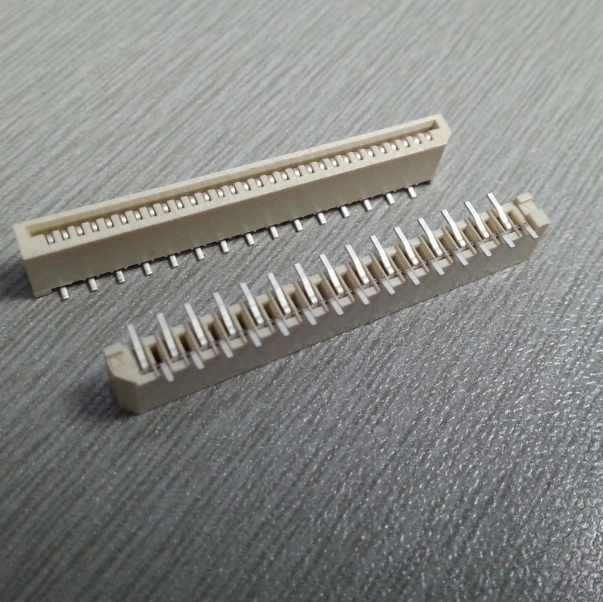

KLS1-240 1.0mm Single Contact NO-ZIF Type H=5.5mm FFC FPC Connectors
Order Information
KLS1-240-XX-S-P-T
XX-No.of 03 ~ 32pin
S-Straight Pin R-Right Angle Pin T-SMT Pin
P-Positive needle A-Anti-needle
R-Reel Packing T-Tube Packing
Material:
Housing: PBT UL94V-0
Contact: Phosphor Bronze
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.5 AMP
Dielectric Withstandingf Voltage: 500 VAC R.M.S.
Insulation resistance: 500m ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +105℃
