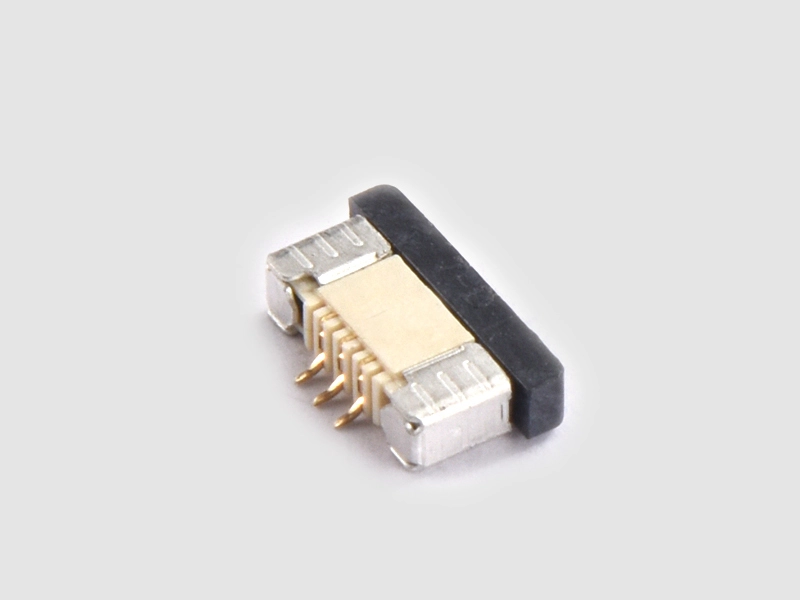

    KLS1-240F  KLS1-240G 1.0mm ZIF SMT H2.0mm bottom  lower contacts FPC FFC connector

    Order Information
    KLS1-240F-2.0-XX-T-U-R
    XX-No.of 06 ~ 30pin
    T-Horizontal SMT
    U-Upper Contact  L-Lower Contact
    R-Reel     T-Tubes

    Material:

    Housing: LCP UL94V-0
    Lock: PA46, UL94V-0
    Plug spring: phosphor bronze, Tin Plated / Gold Plated
    Soldering lug: phosphor bronze, Tin Plated / Gold Plated
    Electrical Characteristics:
    Rated current:0.5A
    Rated voltage:50V
    Withstand voltage:500V
    Contact resistance:≤20mΩ
    Insulation resistance:800MΩ
    Operating Temperature: -20℃ To +85℃
