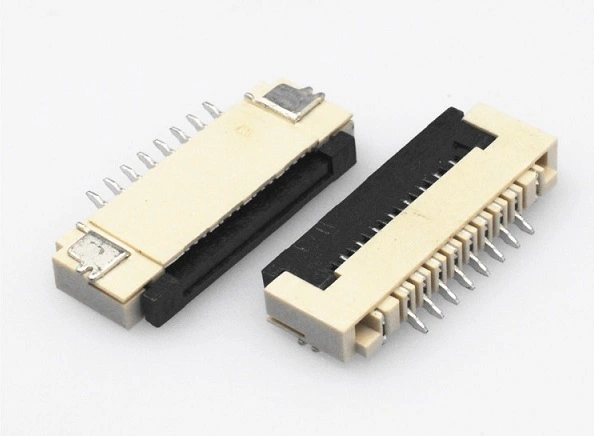

KLS1-240N 1.0mm hinged lock SMT H1.5mm bottom contacts FPC FFC connectors
Order Information
KLS1-240N-1.5-XX-T-L-R
XX-No.of 04 ~60pin
T-Horizontal SMT
L-Lower Contact
R-Reel T-Tubes
Material:
Housing: LCP UL94V-0
Lock: PA46, UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Soldering lug: phosphor bronze, Tin Plated / Gold Plated
Electrical Characteristics:
Rated current:0.3A
Rated voltage:50V
Withstand voltage:500V
Contact resistance:≤20mΩ
Insulation resistance:800MΩ
Operating Temperature: -20℃ To +85℃
