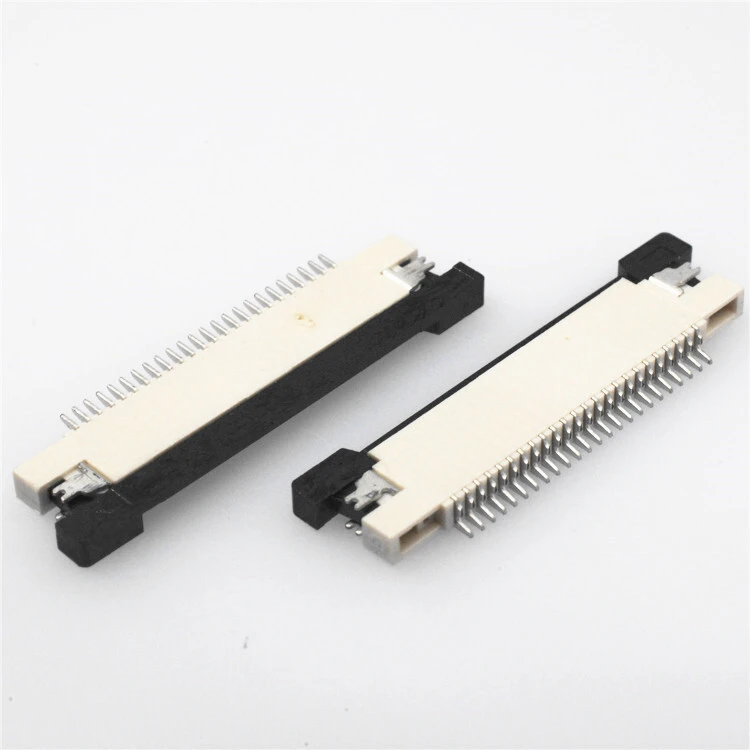

KLS1-242D 0.5mm ZIF SMT H1.2mm bottom / lower contacts FPC/FFC connector
5.0
Place of Origin:
China
Payment:
L/C, D/A, D/P, T/T
MOQ:
1000 PCS
Model:
KLS1-242D
Delivery Time:
10 days
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
KLS1-242D 0.5mm ZIF SMT H1.2mm bottom / lower contacts FPC FFC connector
Order Information
KLS1-242D-1.2-XX-T-U-R
XX-No.of 04 ~ 35pin
Height: 1.2mm
T-SMT Pin
U-Upper Contact L-Lower Contact
R-Reel T-Tubes
Material:
Housing: Nylon 46 UL94V-0
Contact: Phosphor Bronze
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.4 AMP
Dielectric Withstandingf Voltage: 500 VAC R.M.S.
Insulation resistance: 500m ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +105℃
