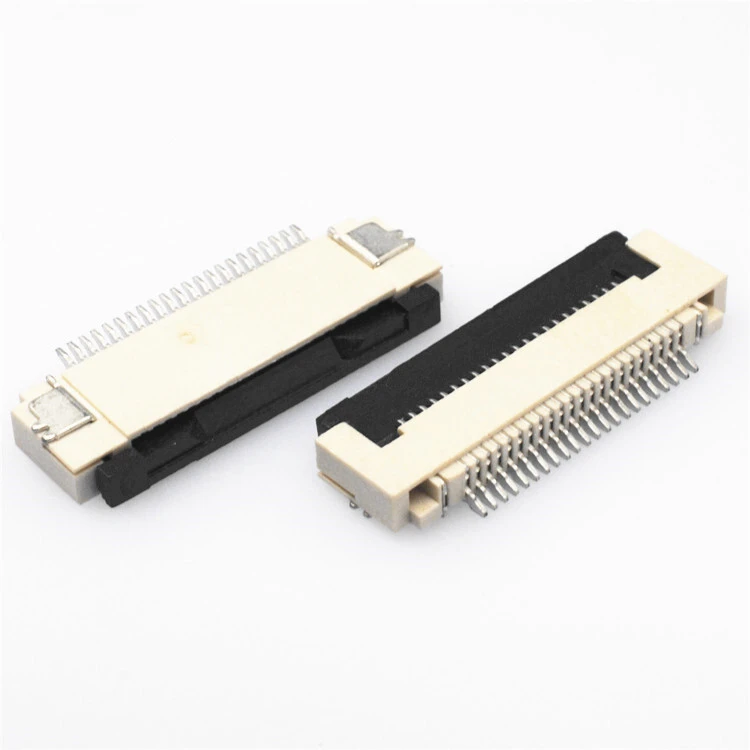

KLS1-242G-2.0 0.5mm hinged lock SMT H2.0mm bottom contacts FPC FFC connectors
Order Information
KLS1-242G-2.0-XX-T-R
XX-No.of 04 ~ 60pin
T-SMT Pin
R-Reel T-Tube
Material:
Housing: Nylon 46 UL94V-0
Contact: Phosphor Bronze
Plating: Tin Plated Over Nickel
Electrical Characteristics:
Voltage rating: 50 VAC
Current rating: 0.4 AMP
Dielectric Withstandingf Voltage: 500 VAC R.M.S.
Insulation resistance: 500m ohm Min
Contact resistance: 30m ohm. max.
Temperature range: -40℃ To +105℃
